Ss304/316/316l Filter Material High Density Wire Mesh Demister
Wire Mesh Demister Information

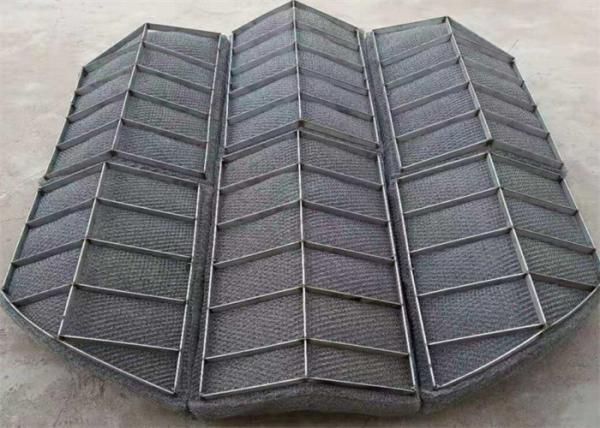

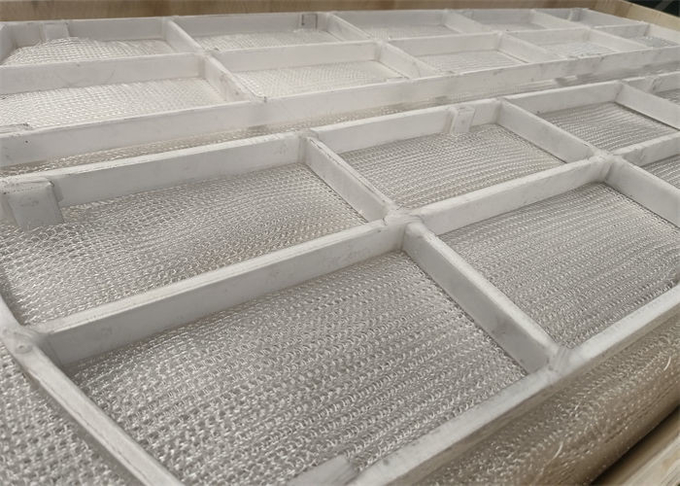

The shape of the wire mesh demister is mainly circular and rectangular. AHS can customize a special-shaped wire mesh demister eliminator upon request. This is a high-efficiency separation unit used in various process industries to remove droplets from gas or vapor streams. The materials are stainless steel wire, nickel wire, copper wire, galvanized wire, iron wire, Monel wire, and so on.
Selected wire mesh form of demister
| Specifications of standard type demister pad |
| Item | Wire type | Wire size
(mm) | Wire width tolerance
(mm) | Bulk density
(kg/m3) | Specific surface area
(m2/m3) | porosity |
| SSTDPAHS-01 | Flat wire | 0.1 × 0.4 | +10/-0 | 150 | 475 | 0.981 |
| SSTDPAHS-02 | Round wire | 0.23 | 320 |
| Note: every 100 mm thick mat has 25 layers of wire mesh. |
| Specifications of efficient type demister pad |
| Item | Wire type | Wire size
(mm) | Wire width tolerance
(mm) | Bulk density
(kg/m3) | Specific surface area
(m2/m3) | porosity |
| ETDP-01 | Flat wire | 0.1 × 0.3 | +10/-0 | 182 | 626 | 0.977 |
| ETDP-02 | Round wire | 0.19 | 484 |
| Note: every 100 mm thick mat has 32 layers of wire mesh. |
| Specifications of high-penetration type demister pad |
| Item | Wire type | Wire size
(mm) | Wire width tolerance
(mm) | Bulk density
(kg/m3) | Specific surface area
(m2/m3) | porosity |
| HP-01 | Flat wire | 0.1 × 0.4 | +10/-0 | 98 | 313 | 0.9875 |
| HP-02 | Round wire | 0.23 | 4217 |
| Note: every 100 mm thick mat has 20 layers of wire mesh. |
| Specifications of shock absorber type demister pad |
| Item | Specification | Filament specifications
(mm) |
| AHS-01 | 33-30 type | 0.08 |
| AHS-02 | 38-40 type | 0.08 |
| AHS-03 | 20-40 type | 0.22 |
| AHS-04 | 30-40 type | 0.1/0.12 |
| AHS-05 | 30-50 type | 0.16 |
| AHS-06 | 40-60 type | 0.12 |
| AHS-07 | 30-80 type | 0.22 |
| AHS-08 | 50-120 type | 0.22 |
| AHS-09 | 40-120 type | 0.22 |
| Type | Standard wire specification |
| SP | 0.1 mm + 0.03 mm × 0.4 mm |
| DP | 0.1 mm + 0.02 mm × 0.3 mm |
| HR | 0.23 mm + 0.03 mm × 0.4 mm. |
| HP | 0.1 mm + 0.03 mm × 0.4 mm |
Working Principle Of Wire Mesh Demister
When mist in the gas rises at a constant speed, then the mist eliminator works where vapor strikes the mesh surface filament and liquid start coalescing. After some time, liquid droplet size goes up and it gets isolated from the filament.
Wire Mesh Demister Characteristic
-
Structure simple, weight light.
-
The high factor of porosity, and low head loss.
-
Great contact surface area, high removing foam ratio.
-
The convenience of installing, operating, and repairing.
Wire Mesh Demister Application
Wire mesh demister pads are used in chemical, petroleum, sulfate, medicine, light industry, metallurgy, machine, building, construction, aviation, shipping, and environment protection.
Company Profile
Anping County Hardware Mesh Products Co., Ltd. is located in Anping County, Hebei Province, known as the "Hometown of Chinese Wire Mesh". The company is a dedicated manufacturer of wire mesh demisters. The company has more than 90 sets of knitted mesh equipment. The wire mesh demister is the main product of our company. Most of our employees are operation, maintenance, and installation personnel with practical experience, who can provide customers with the required engineering consultation and installation of tank filtration. solution.Nearly 20 years of experience in the production of mist eliminator mats, knitted wire mesh, and other packaging materials.
We have ISO9001 certification and a strict quality control system in the QC department of the enterprise.
We claim that all mist eliminator pads our customers receive are qualified and perform perfectly. We have different specifications.
The filtration fineness can reach 3μm~5μm. In addition to standard and popular sizes, we can also customize specific applications according to customer needs.
During the company's development, through continuous on-the-spot inspections, personal exchanges and cooperation with customers, and comprehensive discounts and technical support, we have won strong customer support and praise.
The company's performance has maintained an annual output value growth rate of 30-40. Our employees pursue the policy of "enterprising, truth-seeking, rigorous and united", continue to develop and innovate, take technology as the core, and wholeheartedly provide you with cost-effective products, high-quality engineering design, and services.
Welcome customer consultation and I sincerely look forward to cooperating with you!
